Zinc alloy anodes are particularly suitable for ballast tanks, hull of ships, jetties and subsea pipeline applications, etc. Zinc Alloy Anode are cast from high grade zinc alloy to ensure an even corrosion pattern, reliable electrical efficiency and long working life. The anodes are made to meet ASTM B418 type I standard and U.S. MIL-A-18001K.
| Chemical composition |
| Type |
Element(%) |
| Fe |
Pb |
Cu |
Al |
Cd |
Others |
Zn |
| I |
0.005 Max |
0.006 Max |
0.005 Max |
0.1-0.5 |
0.025-0.07 |
0.01 Max |
Remaider |
| II |
0.0014 |
0.003 Max |
0.002 Max |
0.005 Max |
0.003 Max |
-- |
Remaider |
*Type I: ASTM-B-418 TYPE I and MIL-A-1800 I J.
*Type II: ASTM-B-418 TYPE II.
| Electrochemical properties |
Open Voltage
(-V) |
Closed Voltage
(-V) |
Actual capacitance
A.h/kg |
Efficiency
% |
Solution
Appearance |
| 1.05-1.09 |
1.00-1.05 |
780 min |
95 min |
Solute uniformly |
Zinc Anodes Specification:

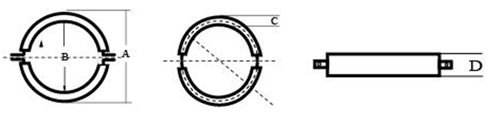

1、For Pipeline in Seawater
| Type |
dimention (mm) |
steel core(mm) |
Zinc Anodes |
| A |
B |
C |
D |
N.W.(kg) |
G.W.(kg) |
| XAL-1 |
335 |
279 |
30 |
49 |
4×30 |
9.4 |
9.6 |
| XAL-2 |
674 |
614 |
32 |
50 |
4×30 |
21.5 |
21.8 |
| XAL-3 |
230 |
110 |
60 |
150 |
4×30 |
43.5 |
44 |
| XAL-4 |
330 |
212 |
60 |
150 |
6×40 |
64.8 |
65.2 |
| AL-5 |
504 |
410 |
46 |
198 |
6×40 |
85.2 |
86 |
| AL-6 |
303 |
230 |
55 |
435 |
6×40 |
121.2 |
121.8 |

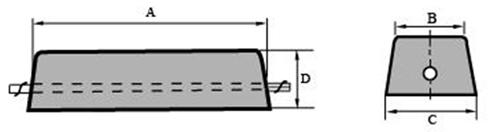

2、Oil Tank Anode
| Type |
dimension(mm) |
steel core |
Zinc Anodes |
| A |
B |
C |
D |
N.W.(kg) |
G.W.(kg) |
| XAG-1 |
750 |
115 |
135 |
130 |
φ16 |
82 |
85 |
| XAG-2 |
500 |
115 |
135 |
130 |
φ16 |
55 |
56 |
| XAG-3 |
500 |
105 |
135 |
100 |
φ16 |
39 |
40 |
| XAG-4 |
300 |
105 |
135 |
100 |
φ10 |
24.6 |
25 |

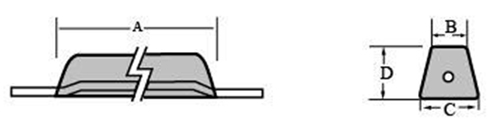

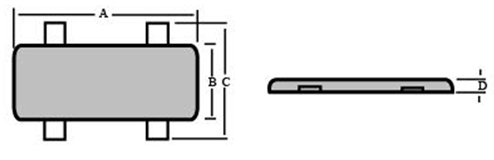

3、Hull Anode weld-on type
| Type |
dimension (mm) |
steel core |
Zinc Anodes |
| A |
B |
C |
D |
N.W.(kg) |
G.W.(kg) |
| XAHS-1 |
1020 |
920 |
130 |
76 |
6×40 |
48 |
50 |
| XAHS-2 |
900 |
800 |
160 |
70 |
6×40 |
60 |
61.5 |
| XAHS-3 |
900 |
800 |
140 |
50 |
6×40 |
37.4 |
39 |
| XAHS-4 |
900 |
800 |
140 |
40 |
6×40 |
29.5 |
31 |
| XAHS-5 |
700 |
600 |
120 |
50 |
6×40 |
24 |
25 |
| XAHS-6 |
580 |
500 |
100 |
40 |
6×40 |
12.7 |
13 |
| XAHS-7 |
460 |
400 |
100 |
40 |
6×40 |
10.6 |
11 |
| XAHS-8 |
360 |
300 |
100 |
40 |
4×30 |
7.2 |
7.5 |
| XAHS-9 |
250 |
200 |
100 |
35 |
4×30 |
4.4 |
4.6 |
| XAHS-10 |
230 |
180 |
70 |
39 |
4×30 |
2.6 |
2.8 |
| Type |
dimension (mm) |
steel core |
Zinc Anodes |
| A |
B |
C |
D |
N.W.(kg) |
G.W.(kg) |
| XAHD-1 |
300 |
150 |
230 |
50 |
6×40 |
13.7 |
14.5 |
| XAHD-2 |
300 |
150 |
230 |
40 |
6×40 |
10.7 |
11.5 |
| XAHD-3 |
300 |
150 |
230 |
30 |
6×40 |
8.7 |
9 |
| XAHD-4 |
711 |
102 |
230 |
38 |
6×40 |
18.7 |
19 |

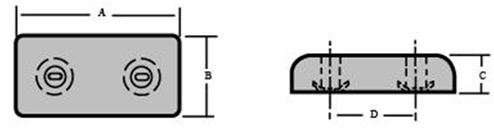

4、Hull Anode bolt-on type
| Type |
dimension (mm) |
Zinc Anodes |
| A |
B |
C |
D |
N.W.(kg) |
G.W.(kg) |
| XAHB-1 |
300 |
150 |
50 |
160 |
11.6 |
12 |
| XAHB-2 |
300 |
150 |
40 |
160 |
8.6 |
9 |
| XAHB-3 |
300 |
200 |
40 |
160 |
14.8 |
15.2 |
| XAHB-4 |
300 |
200 |
65 |
160 |
26.4 |
26.8 |
| XAHB-5 |
540 |
130 |
50 |
340 |
22.1 |
22.5 |
| XAHB-6 |
460 |
200 |
64 |
260 |
29.1 |
29.5 |

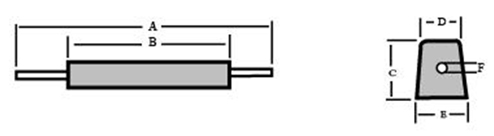

5、Ballast Tank Anode
| Type |
dimension (mm) |
Zinc Anodes |
| A |
B |
C |
D |
E |
F |
N.W.(kg) |
G.W.(kg) |
| XAT-1 |
1985 |
1525 |
50 |
65 |
75 |
φ12 |
47.5 |
49 |
| XAT-2 |
1960 |
1500 |
65 |
75 |
70 |
φ12 |
48.3 |
50 |
| XAT-3 |
1960 |
1500 |
58 |
64 |
57 |
φ12 |
36.5 |
38 |
| XAT-4 |
1600 |
1140 |
51 |
69 |
51 |
φ12 |
24.5 |
25.5 |
| XAT-5 |
1460 |
1000 |
65 |
75 |
65 |
φ12 |
31.8 |
33 |
| XAT-6 |
1610 |
1150 |
48 |
54 |
51 |
φ12 |
18.6 |
20 |
| XAT-7 |
1460 |
1000 |
80 |
100 |
80 |
φ16 |
50.8 |
52 |
| XAT-8 |
1260 |
800 |
55 |
65 |
60 |
φ12 |
21.3 |
22 |
6、Sea Water Exchange Cooler
| Type |
dimension(mm) |
steel core (mm) |
Zinc Anodes |
| A |
B |
C |
D |
N.W.(kg) |
G.W.(kg) |
| XASI-1 |
1000 |
80 |
100 |
80 |
100×12 |
49 |
50 |
| XASI-2 |
500 |
105 |
135 |
100 |
50×12 |
38.6 |
40 |
| XASI-3 |
500 |
80 |
100 |
80 |
φ28 |
24.4 |
25 |
| XASI-4 |
400 |
110 |
50 |
120 |
80×12 |
15.4 |
16 |
| XASI-5 |
300 |
140 |
160 |
40 |
φ25 |
50×8 |
12 |
12.5 |
| XASI-6 |
200 |
90 |
110 |
40 |
φ25 |
60×8 |
5.3 |
5.5 |
| Type |
dimension(mm) |
Zinc Anodes |
| A |
B |
Weight (kg) |
| XASR-1 |
φ400 |
20 |
17.5 |
| XASR-2 |
φ300 |
60 |
30 |
| XASR-3 |
φ360 |
40 |
28.5 |
| XASR-4 |
φ300 |
40 |
20 |
| XASR-5 |
φ200 |
50 |
10.5 |
| XASR-6 |
φ180 |
50 |
8.5 |
| ASR-7 |
φ120 |
100 |
7.5 |
*We also can supply special shape, size and chemical composition anodes upon your request.
|
