| High potential cast magesium anodes |
|
High potential cast magnesium anodes is the best choice for high resistivity soil environment.
|
HP Anode
|
Chemical composition(%)
|
|
Elements
|
|
Mg
|
Fe≤
|
Si≤
|
Ni≤
|
Cu≤
|
Al≤
|
Mn
|
Other Impurities≤
|
|
Content
|
Balance
|
0.02
|
0.04
|
0.001
|
0.015
|
0.01
|
0.50-1.30
|
0.30
|
|
Electrochemical Properties
|
|
Amps/Hrs./Lb.
|
≥499.4
|
|
Efficiency
|
≥51%
|
|
Closed Circuit Potential
|
-1.64 to -1.69v
|
|
Open Circuit Potential
|
-1.70 to -1.77v
|
| Product No. |

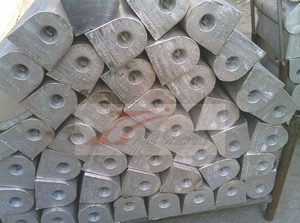

Bare Anode |

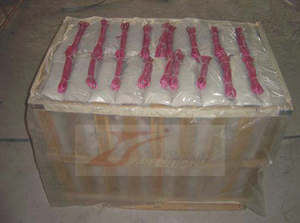

Prepackaged Anode |
| Width(W) |
Height(H) |
Length(L1) |
Weight |
Diameter(D) |
Length(L2) |
Weight |
| in |
mm |
in |
mm |
in |
mm |
ib |
kg |
in |
mm |
in |
mm |
ib |
kg |
| XS-MG-3 HP 3D3 |
3.5 |
89 |
3.75 |
95 |
5 |
127 |
3 |
1.4 |
6 |
152 |
10 |
254 |
8 |
3.6 |
| XS-MG-5 HP 5D2 |
2.75 |
70 |
3 |
76 |
12 |
305 |
5 |
2.3 |
5.9 |
150 |
16.7 |
425 |
15 |
7 |
| XS-MG-5 HP 5D2 |
3.5 |
89 |
3.75 |
95 |
8.5 |
216 |
5 |
2.3 |
6 |
152 |
12 |
305 |
17 |
7.7 |
| XS-MG-9 HP 9D3 |
3.5 |
89 |
3.75 |
95 |
14 |
356 |
9 |
4.1 |
6 |
152 |
17 |
432 |
27 |
12.2 |
| XS-MG-17HP 17D3 |
3.5 |
89 |
3.75 |
95 |
25.75 |
654 |
17 |
7.7 |
7.5 |
191 |
34 |
864 |
45 |
20.4 |
| XS-MG-20 HP 20D2 |
2.75 |
70 |
3 |
76 |
59.75 |
1518 |
20 |
9.1 |
5 |
127 |
66 |
1676 |
70 |
31.8 |
| XS-MG-32 HP 32D5 |
5.5 |
140 |
5 |
127 |
20.5 |
521 |
32 |
14.5 |
8 |
203 |
28 |
711 |
70 |
31.8 |
| XS-MG-32 HP 32D3 |
3.5 |
89 |
3.75 |
95 |
45.25 |
1149 |
32 |
14.5 |
6.5 |
165 |
53 |
1346 |
91 |
41.3 |
| XS-MG-40 HP 40D3 |
3.5 |
89 |
3.75 |
95 |
59.75 |
1518 |
40 |
18.1 |
6.5 |
165 |
66 |
1676 |
96 |
43.5 |
| XS-MG-48 HP 48D5 |
5.5 |
140 |
5.75 |
146 |
31 |
787 |
48 |
21.8 |
8 |
203 |
38 |
965 |
100 |
45.4 |
|
|
| |
|
